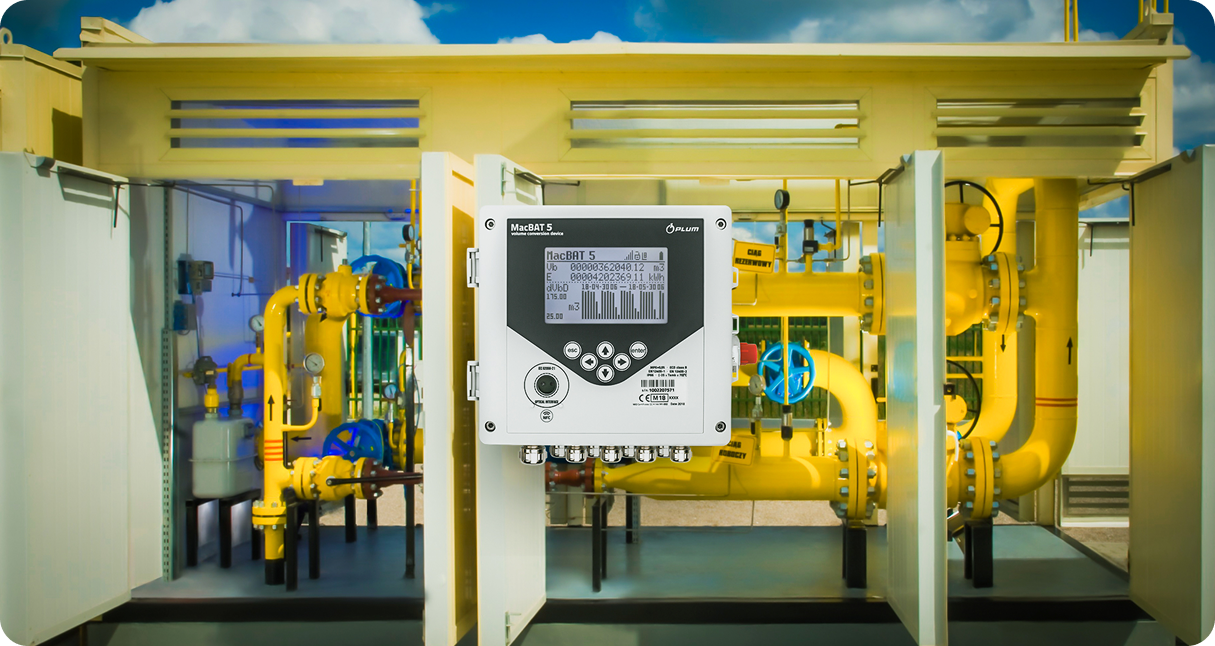

MacBAT 5 Electronic Volume Corrector
MacBAT 5 can be used in wide applications extending the typical volume conversion thanks to a variety of measurement and diagnostic inputs available in the standard hardware variant.
Additional dedicated interfaces, modules and sensors can extend the MacBAT 5 to be a significant part of a gas station
accuracy and monitoring device instead of only being a standard electronic volume conversion device.
Main Functional Characteristics
- Built-in 4G LTE modem for remote data access and integration
- Reverse flow detection and compensation to prevent measurement errors
- Real-time measurement every second with high storage capacity
- Certified compressibility algorithms for natural gas, hydrogen blends and biomethane
- Intrinsically safe design for Zone 0 installations (ATEX/IECEx certified)
- Works up to 14 years of maintenance-free battery-powered operation
- Supports Modbus and other communication standards for SCADA/IoT systems
AboutMacBAT 5
It measures data every second using certified algorithms that support natural gas, hydrogen and biomethane. It runs up to 14 years without battery replacement and stores up to 10 years of measurement data in its large memory. The NFC-based configuration lets you set it up easily using a mobile phone app. The corrector also integrates with SCADA or BMS systems using popular communication protocols.
The MacBAT 5 is a compact intrinsically safe electronic corrector that mixes precision measurement with strong communication features. It uses built-in sensors (LF, HF, Encoder, Wiegand) to calculate compressibility with advanced algorithms (SGERG-88, AGA-92, NX-19-mod, K₁) and gives accurate correction to base conditions.
The device has reverse flow detection, second-by-second sampling and up to 10 years of storage capacity. It comes with an LTE modem, NFC and Modbus interfaces for easy SCADA or data system integration.
The long battery life, IP66 protection and rugged housing make it suitable for urban networks and remote outdoor installations.
MID Certified – EU Measuring Instruments Directive
ATEX / IECEx Approved – safe for Zone 0 hazardous areas
Version 2: 202 × 167 × 93 mm / 3.5 kg
